Name: 4K endoscope camera module
Model: HCM8252

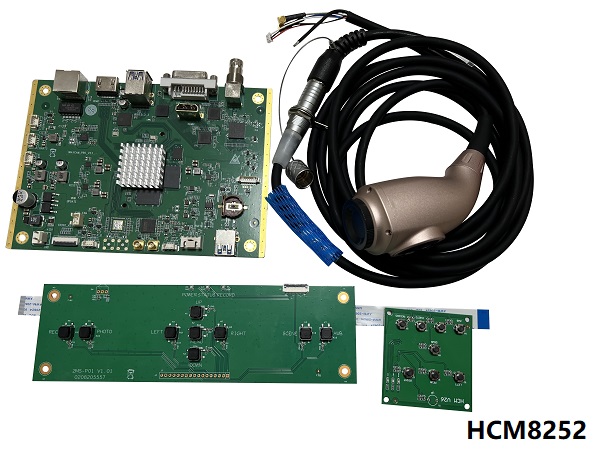

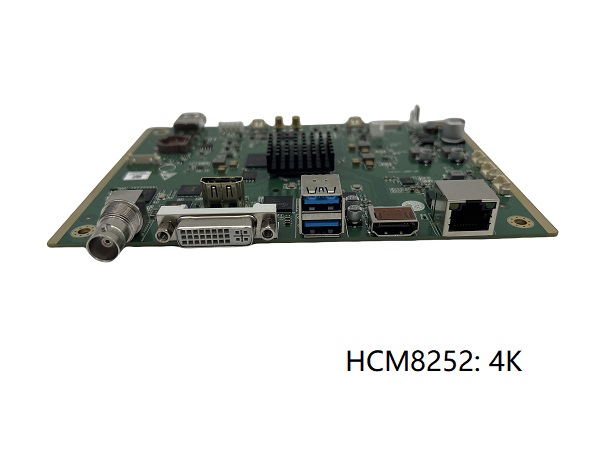

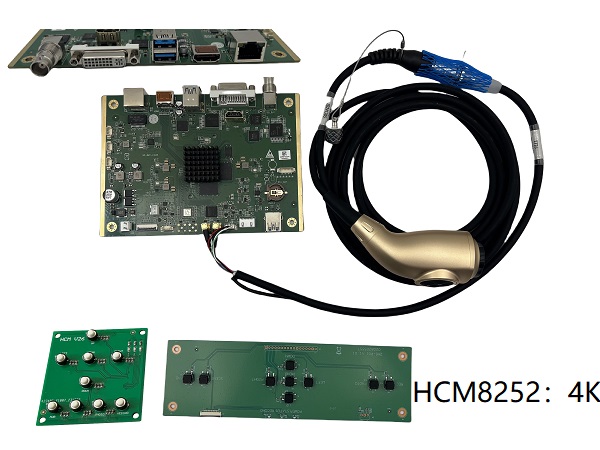

HCM8252: 4K endoscope camera module
BRAND | HCM MEDICA |
SENSOR | 1/1.8 CMOS |
RESOLUTIONS | 3840(H)*2160(V) 60 FPS |
SCAN MODE | PROGRESSIVE SCAN |
HORIZONTAL RESOLUTION | 2200TVL |
FOCUSING RANGE | ¡Ý(2-200)MM |
SNR | ¡Ý40 DB |
BRIGHTNESS | ADJUSTABLE |
WHITE BALANCE | MANUAL / AUTO |
MINIMUM INTENSITY | F1.2¡Ü 0.1 LUX |
DNR | 2D/3D VOX |
VIDEO OUTPUT | 3G-SDI, DVI, USB3.0*2 , HDMI2.0, RJ45 |
PHOTO / VIDEO RECORD | SUPPORTED |
RECORDING FORMAX | MP4 |
RECORODING RESOLUTION | 10Mbs@1080P 30FPS / 30Mbs@4K 30FPS |
U FLASH DISK | MAX 1TB |
HDD | MAX 4TB |
POWER | AC110-240V |
COUPLER (OPTIONAL) | F18/20/22/24/28/32/25, OR ZOOM 32-35 |
HCM MEDICA ® is a leading manufacturer for medical endoscope camera system, we focus on light and image only£ºmedical endoscope camera, coupler, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
