ent laparoscope camera

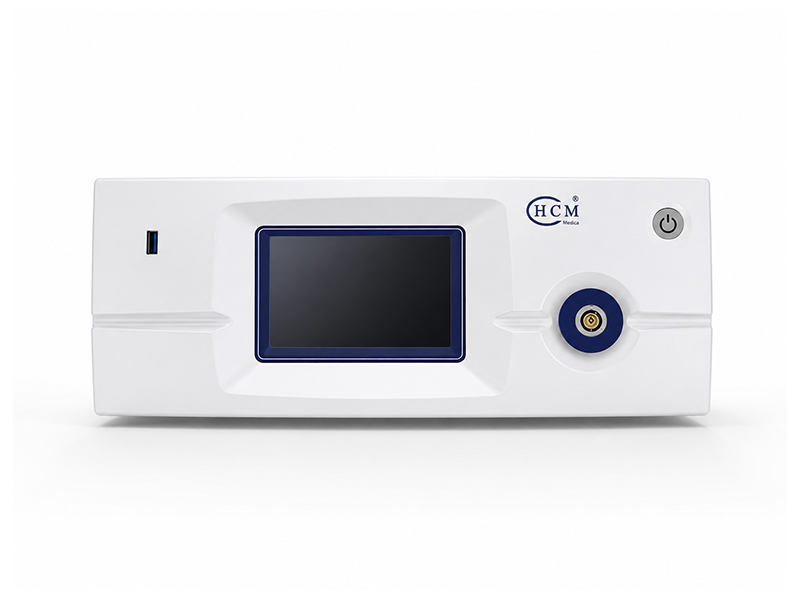

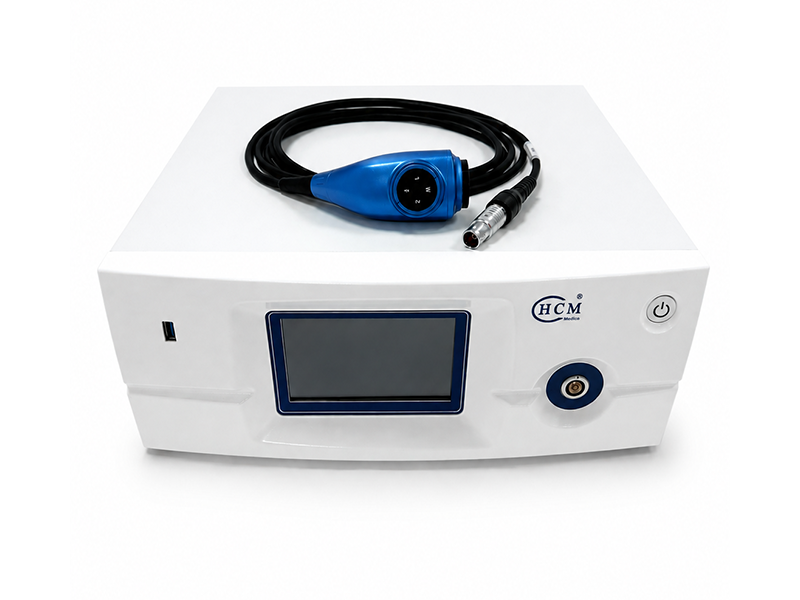

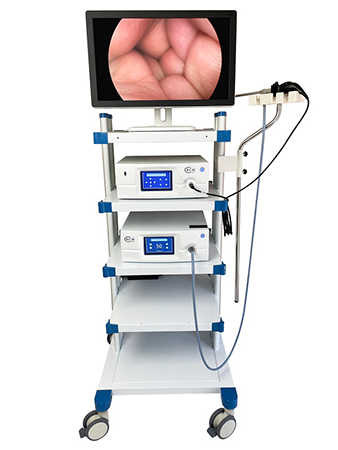

Name: ent laparoscope camera

Model: HCM8261


This FHD medical endoscope camera HCM8261 is 1080P grade, widely used in all kinds of endoscopy applications, such as ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc, with photo and video record function, one click operation for white balance and picture freeze.

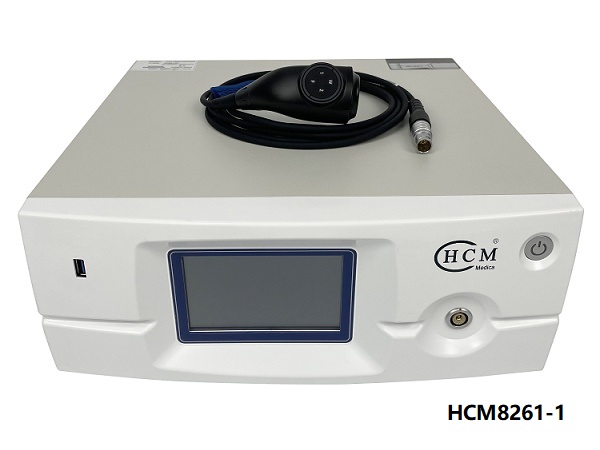

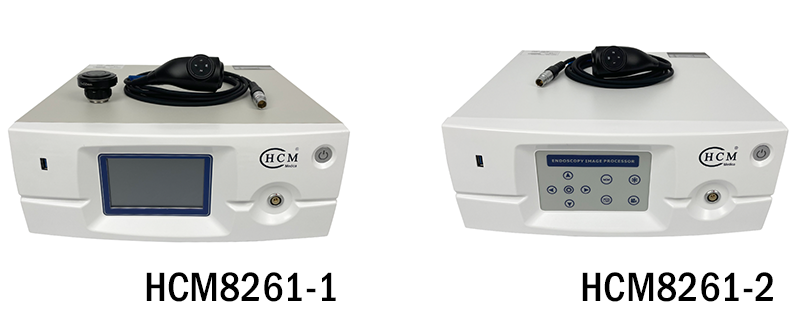

HCM8261-1: with touch screen


HCM8261-2: with press button















¡ô Imported CMOS, which bring you perfect image and video effect with 1920*1080P 60fps resolution.



¡ôWidely used in all endoscopy applications, ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc.



¡ôQuick operation for white balance and image freeze with one click only.



¡ôFunction is adjustable for camera head and processor unit buttons.



¡ôFree from electromagnetic interference, such as ultrasonic knife, plasma knife, electrosurgical unit, etc.



¡ôCamera head is water proof ip8x grade, low temperature plasma and soaking disinfection is recommend.



¡ôFast light extinction with less than 0.2s, which makes operations smoother.



MODEL

HCM8261-1:   with touch screen

HCM8261-2:   with press button

BRAND

HCM   MEDICA

SENSOR

1/2   CMOS

RESOLUTIONS

1920(H)*1080(V)  60 FPS

SCAN   MODE

PROGRESSIVE   SCAN

HORIZONTAL   RESOLUTION

1100TVL(1080P)

FOCUSING   RANGE

¡Ý(2-200)MM

SNR

¡Ý40 DB

BRIGHTNESS

ADJUSTABLE

WHITE   BALANCE

MANUAL   / AUTO

MINIMUM   INTENSITY

F1.2¡Ü 0.1 LUX

DNR

2D   NOISE REDUCTION

VIDEO   OUTPUT

SDI*1,   CVBS*1, DVI*1, HDMI*1, USB*2

PHOTO   / VIDEO RECORD

SUPPORTED

RECORDING   FORMAX

MP4

RECORODING   RESOLUTION

18MBS   1080P 60FPS

U   FLASH DISK

MAX   1TB

HDD

MAX   2TB

POWER

AC110-240V

COUPLER   (OPTIONAL)

F18/20/22/24/28/32/25,   OR ZOOM 32-35
