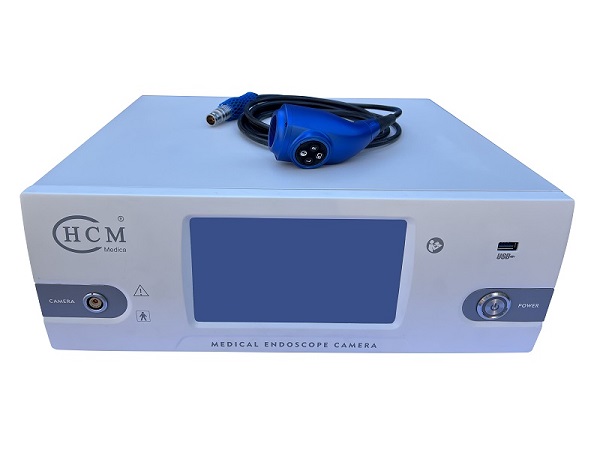

HCM8260 FHD medical endoscope camera is 1080P grade, widely used in all kinds of endoscopy applications, such as ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc, with photo and video record function, one click operation for white balance and picture freeze.
◆ Imported CMOS, which bring you perfect image and video effect with 1920*180P 60fps resolution.
◆Widely used in all endoscopy applications, ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc.
◆Quick operation for white balance and image freeze with one click only.
◆Function is adjustable for camera head and processor unit buttons.
◆Free from electromagnetic interference, such as ultrasonic knife, plasma knife, electrosurgical unit, etc.
◆Camera head is water proof ip8x grade, low temperature plasma and soaking disinfection is recommend.
◆Fast light extinction with less than 0.2s, which makes operations smoother.
MODEL | HCM8260 |
BRAND | HCM MEDICA |
SENSOR | 1/2 CMOS |
RESOLUTIONS | 1920(H)*1080(V) 60 FPS |
SCAN MODE | PROGRESSIVE SCAN |
HORIZONTAL RESOLUTION | 1100TVL(1080P) |
FOCUSING RANGE | ≥(2-200)MM |
SNR | ≥40 DB |
BRIGHTNESS | ADJUSTABLE |
WHITE BALANCE | MANUAL / AUTO |
MINIMUM INTENSITY | F1.2≤ 0.1 LUX |
DNR | 2D NOISE REDUCTION |
VIDEO OUTPUT | SDI*1, CVBS*1, DVI*1, HDMI*1, USB*2 |
PHOTO / VIDEO RECORD | SUPPORTED |
RECORDING FORMAX | MP4 |
RECORODING RESOLUTION | 18MBS 1080P 60FPS |
U FLASH DISK | MAX 1TB |
HDD | MAX 2TB |
POWER | AC110-240V |
COUPLER (OPTIONAL) | F18/20/22/24/28/32/25, OR ZOOM 32-35 |
HCM MEDICA ® is a leading manufacturer for medical endoscope camera system, we focus on light and image only：medical endoscope camera, coupler, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
